Meyer
can handle a wide variety of manure:
Pen Packed Manure - Liquid
Manure
Sand Bedded Manure - Poultry
Litter
Sludge Products - Municipal
Wastes
DOWNLOAD
DEMONSTRATION VIDEO OF THIS PRODUCT
The new V-Max
Series Super Spreader is the most user-friendly spreader
on the market today. The manure pattern stays low to minimize
splash and wind carried manure. You can spread in any
direction regardless of the wind. The Meyer spreader keeps
your tractor and spreader clean. The spreader will unload
fast and give you an even, consistent spread pattern.
The
Big Difference...
Rear
Unload |
 |
| The
rear unload system is low maintenance with
this new aggressive design.
Shaft
driven 540 RPM vertical expellers combined
with break away material guides provide
extremely aggressive and consistent spreading
without plugging. The Super Spreaders
large 42 X 27" gate opening accepts tough
material and others just can't handle.
The
vertical expellers are turning in opposite
directions at 540 RPM's. This creates
an excellent separation of all types of
manure and waste products. Spread
pattern stays low and even. Wind
has no effect on your spread pattern,
wind will not drift manure onto your tractor
or spreader.
The
heavy duty rear gate is 1/2" thick and
slides up and down against a thick, non-freezable
poly panel. Designed for cold weather
usage. |
|
The Meyer Spreader
is a solid unit made of heavy rust-resistant steel
(copper bearing 3/16"). The tank
has a 10-year warranty against
rust-through. Check this spreader
out before you buy.
Your Meyer dealer will do
a demo on your farm.
 |

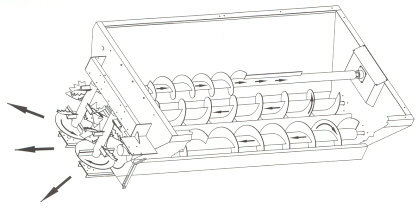

This
CUTAWAY DIAGRAM illustrates the SUPER SPREADER'S
patented rear unload design. Material is directed
straight out the large back gate of the spreader
by two 20" lower augers while the upper auger runs
forward to eliminate bridging. This system
requires much less horsepower and unloading time
than side discharge spreaders. And your tractor
and spreader stay clean too! |
Heavy
Duty Reduction Drive
Simple, efficient drive systems power the V-Max
Super Spreader line with #120 drive chains.
Tough spring loaded chain tighteners are used on
all drive line roller chains. True chain alignment
will add years of life to your Meyer Spreader. |
..... |
| Dimensions/Specs. |
V-Max
2636 |
V-Max
3245 |
V-Max
3954 |
Capacity
Bushels/cu.ft./gallons
(w/out height extension) -
(w/ height extension) - |
260/180/1355
360/233/1745 |
320/227/1694
450/292/2189 |
390/272/2033
540/350/2617 |
| Weight |
6100
lbs. |
7640
lbs. |
8650
lbs. |
Height
(w/14L Tire) -
(w/Height Ext.) -
(Optional 16.5 Tire) - |
58 1/2"
Add 9"
Add 1 1/2 " |
58 1/2"
Add 9"
Add 1 1/2 " |
58 1/2"
Add 9"
Add 1 1/2 " |
Overall
Width (w/14L x 16.1)
Outside of tires
(Optional 16.5 Tire) - |
Single
Axle
84 1/2"
Add 7" |
Tandem
Axle
96"
Add 7" |
Tandem
Axle
96"
Add 7" |
Tank Length
Overall Length |
12'
18' 5" |
15'
21' 5" |
18'
24' 5" |
| Specifications |
V-Max
2636 |
V-Max
3245 |
V-Max
3954 |
Max. Load
w/Spreader Weight |
12,000#/24,000#
Single/Tandem |
24,000#
Tandem |
32,000#
Tandem |
| Roller
Chain Drive |
80-120 |
80-120 |
80-120 |
Constant
Velocity PTO
w/Overrunning Clutch |
Standard
540 RPM |
Standard
540 RPM |
Standard
540 RPM |
| Axle |
Single/Tandem |
Tandem |
Tandem |
| Hub
Size |
8 bolt-6000# |
8 bolt-6000# |
8 bolt-8000# |
| Spindle
Size |
2 3/4" |
2 3/4" |
3" |
| Frame
Construction |
8"
Channel |
8"
Channel |
8"
Channel |
| Door
Opening |
27"
X 42" |
27"
X 42" |
27"
X 42" |
| Tank
Steel Copper-Bearing |
3/16" |
3/16" |
3/16" |
| Auger
Diameter |
20" |
20" |
20" |
| Auger
Flighting Thickness |
3/8"
sectional |
3/8"
sectional |
3/8"
sectional |
| Drive
Line Protection |
Overrunning
Slip Clutch |
Overrunning
Slip Clutch |
Overrunning
Slip Clutch |
| Expeller
Speed |
540
RPM |
540
RPM |
540
RPM |
| H.P.
Requirements Min. |
65 |
85 |
100 |
| Options |
V-Max
2636 |
V-Max
3245 |
V-Max
3954 |
| Height
Extension ( Normally 9") |
Optional |
Optional |
Optional |
| Height
Extension (4' - 6') |
Optional |
Optional |
Optional |
| High Volume
Poultry Extension |
Optional |
Optional |
Optional |
| Auto
Oiler |
Optional |
Optional |
Optional |
| 3rd
Auger (for solid materials) |
Optional |
Optional |
Optional |
| Light Package |
Standard |
Standard |
Standard |
| Independent
Lower Auger Shear Hub Sprockets |
Optional |
Optional |
Standard |
| Hydraulic
Lid |
Optional |
Optional |
Optional |
| 1000
RPM PTO |
Optional |
Optional |
Optional |
| Safety
Chain |
Optional |
Optional |
Optional |
| Truck
Mount |
Optional |
Optional |
Optional |
|
