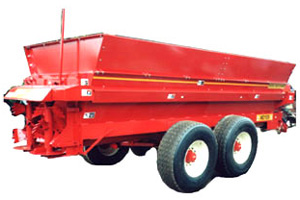

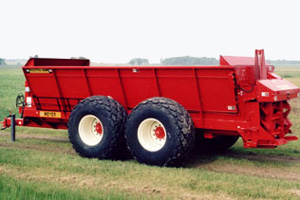

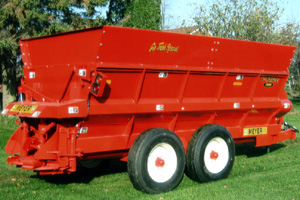

V-Force 7500 Poultry Litter Spreader |
8865 Poultry Litter Spreader |
V-Max 3954 Poultry Litter Spreader |
Even, Consistent
Spread Patterns maximize the value of your poultry
litter by applying all varieties consistently. Sticky,
crusty or fluffy materials are no match for the
Super Spreader's aggressive unloading system.
You can spread in any direction, regardless of wind
direction
More
Spreader For Your Money
The
Meyer Super Spreader not only does a superior job
of applying your
Poultry Litter, it's also capable
of spreading cattle manure, gin
trash and
sludge products as well!
The
Big Difference...
Rear Unload |
 |
| The
rear unload system is low maintenance
with this new aggressive design.
Shaft
driven vertical expellers combined
with Break-Away material guides
provide extremely aggressive and
consistent spreading without plugging.
The Super Spreaders large 27 x 42"
gate opening (32 x 53" on Industrials)
accepts tough material and others
just can't handle.
The
vertical expellers are turning in
opposite directions. This creates
an excellent separation of all types
of litter, manure and waste products.
Spread pattern stays low and even.
Wind has no effect on your spread
pattern, wind will not drift manure
onto your tractor or spreader.
The
heavy duty rear gate is 1/2" thick
and slides up and down against a
thick, non-freezable poly panel.
Designed for cold weather usage. |
|
The Meyer Spreader is a solid
unit made of heavy rust-resistant steel
(copper bearing 3/16" and
1/4"). The tank has a 10-year warranty against
rust-through. Check this spreader
out before you buy.
Your Meyer dealer will
do a demo on your farm.
|
This
CUTAWAY DIAGRAM illustrates the SUPER SPREADER'S
patented rear unload design.
Material
is directed straight out the large back
gate of the spreader by two 20" lower augers
(23" on Industrials) while the upper
auger runs forward to eliminate bridging.
This
system requires much less horsepower and
unloading time than side discharge spreaders.
And the tractor and spreader stays clean
too! |
|
| Dimensions/Specs. |
V-Max
2636 |
V-Max
3245 |
V-Max
3954 |
V-Force
7500 |
Ind.
8720 |
Ind.
8865 |
Capacity-
Bushels/cu.ft.
V-MAX-19"
flared ext.
V-FORCE - no ext.
- 12" straight ext.
- 19" flared ext.
Industrial - no ext. |
476/315
|
595/393
|
714/472
|
500/324
643/424
795/525 |
720/475 |
865/562 |
| Weight |
6122
lbs. |
7544
lbs. |
8688
lbs. |
9,300
lbs. |
13,720
lbs. |
18,140
lbs. |
Height (Loading)
(w/16.5Lx16.1) |
79"
w/19" Ext. |
79"
w/19" Ext. |
79"
w/19" Ext. |
76"-No
Ext.
88"-12" Ext.
95"-19" Flared |
87"
w/21.5Lx16.1 |
88"
w/28Lx26 |
Overall Width
Outside of tires
w/16.5Lx16.1 |
Single
91.5"
Tandem 103" |
Tandem
103" |
Tandem
103" |
101.5"
w/16.5L |
118"
w/16.00 x 20 |
141"
w/28Lx26 |
Tank Length
Overall Length |
12'
18' 5" |
15'
21' 5" |
18'
24' 5" |
15"
23' 4" |
16'
8"
26' 6" |
20'
29' 10" |
Max. Load
w/Spreader Weight |
12,000#/24,000
Single/Tandem |
24,000#
Tandem |
32,000#
Tandem |
32,000#
Tandem |
40,000#
Tandem |
60,000#
Hi-Float Tandem |
| Roller
Chain Drive |
80-120 |
80-120 |
80-120 |
80-120 |
80-120-140 |
80-120-140 |
Constant
Velocity PTO
w/Overrunning Clutch |
Standard
540 RPM |
Standard
540 RPM |
Standard
540 RPM |
Standard
540 RPM |
Standard
1000 RPM |
Standard
1000 RPM |
| Axle |
Single/Tandem |
Tandem |
Tandem |
Tandem |
Tandem |
Tandem |
| Hub
Size |
8
bolt-6000# |
8
bolt-6000# |
8
bolt-8000# |
8
bolt-8000# |
10-bolt
- 15,000# |
10-bolt
- 20,000# |
| Spindle
Size |
2
3/4" |
2
3/4" |
3" |
3" |
3
1/2" |
4
1/2" |
| Frame
Construction |
8"
Channel |
8"
Channel |
8"
Channel |
8"
Channel |
8"
Channel |
8"
Channel |
| Door
Opening |
27"
X 42" |
27"
X 42" |
27"
X 42" |
27"
X 42" |
32"
X 53" |
32"
X 53" |
| Tank
Steel Copper Bearing |
3/16" |
3/16" |
3/16" |
3/16" |
1/4" |
1/4" |
| Auger
Diameter |
20" |
20" |
20" |
20" |
23" |
23" |
| Auger
Flighting Thickness |
3/8"
sectional |
3/8"
sectional |
3/8"
sectional |
3/8"
sectional |
3/8"
sectional |
3/8"
sectional |
| Drive
Line Protection |
Overrunning
Slip Clutch |
Overrunning
Slip Clutch |
Overrunning
Slip Clutch |
Overrunning
Slip Clutch |
Overrunning
Slip Clutch |
Overrunning
Slip Clutch |
|
Lower Auger Shear Hubs |
Optional |
Optional |
Standard |
Standard |
Standard |
Standard |
| Expeller
Speed |
690
RPM |
690
RPM |
690
RPM |
690
RPM |
716
RPM |
716
RPM |
| Auger
Speed |
7 |
7 |
7 |
7 |
8.5 |
8.5 |
| H.P.
Requirements Min. |
75 |
95 |
110 |
110 |
140 |
160 |
| Auto
Oiler |
Optional |
Optional |
Optional |
Standard |
Standard |
Standard |
| 3rd
Auger (solid materials) |
Optional |
Optional |
Optional |
Standard |
Standard |
Standard |
| Height
Extension |
Optional |
Optional |
Optional |
Optional |
N/A |
N/A |
| Hydraulic
Lid |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
| 19"
Longer Hitch |
Optional |
Optional |
Optional |
Optional |
N/A |
N/A |
| 1000
RPM PTO |
Optional |
Optional |
Optional |
Optional |
Standard |
Standard |
| 540
RPM |
Standard |
Standard |
Standard |
Standard |
N/A |
N/A |
| Light
Package |
Standard |
Standard |
Standard |
Standard |
Standard |
Standard |
| Safety Chain |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |

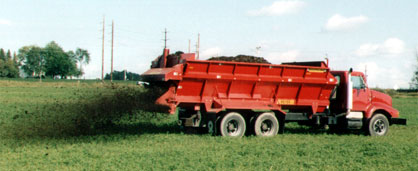

| Truck
Mount |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
|
|
|
