Industrial V-Spreader in Action

Turning Manure/Litter/Waste into a Manageable Resource
Pen Packed Manure - Liquid Manure - Sand Bedded Manure - Poultry Litter - Sludge Products - Municipal Sludge

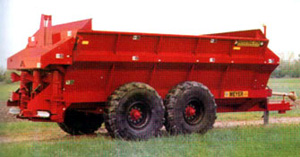

Model 8720 Industrial
720 Bushel/3,500 gallons

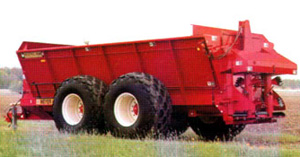

Model 8865 Industrial
865 Bushel/4,200 gallons

DOWNLOAD DEMONSTRATION VIDEO OF THIS PRODUCT

This CUTAWAY DIAGRAM illustrates the SUPER SPREADER'S patented rear unload design.  Material is directed straight out the large back gate of the spreader by two lower augers while the upper auger runs forward to eliminate bridging.  This system requires much less horsepower and unloading time than side discharge spreaders.  And the tractor and spreader stays clean regardless of wind direction.


The rear discharge features massive 30" diameter tilted
expellers, 1/2" bolt on jaws and heavy duty direct
drive. Notice the break-away material guides
which provide maximum spread performance and
protection from foreign objects.

Spread pattern will vary from 20' to 40'
wide depending on material density.
Application rates can be reduced
by changing auger speeds.


FEATURES ON BOTH 8720 & 8865 SPREADERS



  • All Meyer Industrial Spreaders feature three augers constructed of massive sectional flighting. Thrust bearing and nylatron sleeves on the drive side of the auger reduce stress and horse power requirements. Steep tank sides constructed from heavy gauge, rust resistant steel are just plain heavier than the rest!
  • A "T-Post" Auger hold down system creates a larger opening for foreign objects to pass through.
  • Individual Bottom Auger Shear Hub Protection safe guards your investment and allows you to unload even with one auger obstructed. Standard feature 8720 & 8865.
  • Hardened expeller jaws are easy to replace and less expensive than pivoting hammer systems.
  • Easy Serviceability - Grease banks provide quick maintenance from ground level.
  • Auto Oiler will automatically oil your roller chains each time you operate the tailgate. Operator maintains easy access to components, unlike oil bath designs. Reservoir easily filled on side of spreader.
  • The optional Hydraulic Lid is available. The lid provides cleaner transportation and less odor pollution. right or left opening.
  • Meyer Super Spreaders can be truck mounted for fast over the road transport to your fields. Meyer units are adaptable to a wide range of trucks and also terra-gator systems. Drive options include both PTO and hydraulic.





Standard Equipment Specifications
Dimensions
Ind. 8720 Trailer Type w/21.5 Tires
Ind. 8720 Trk Mt.
w/Mount Brkts
Ind. 8865 Trailer Type
w/28L-26 Tires
Ind. 8865 Trk Mt.
w/Mt. Brkts
Bushels Heaped
Gallons/Cu.Ft. (struck)
Cu. yards (struck)
720
3500/468
17.33 cu.yards
720
3500/468
17.33 cu. yards
865
4200/562
20.8 cu. yards
865
4200/562
20.8 cu. yards
Overall Length
26' 6"
20' 10 " Hyd. Motor 29' 10" 24' 2" w/Hyd Motor
Inside Tank Length
16' 8"
16' 8" 20' 20'
Loading Height
87" w21.5 or 425/65
91" w/16.00 x 20
68" plus trk ht. 88" w/28L x 26 68" plus trk. ht.
Overall Height-
 -Top of Splash Guard
96" w/21.5 or 425/65
100" w/16.00 x 20
77" plus trk ht. 97" w28L x 26 77" plus trk ht.
Overall Width (outside tires) 118" w/21.5L
114" w/16.00 x 20
101" - 101"
Overall Width w/high
floatation axle pkg.
141" w/28L x 26 N/A 141" w/28L x 26 N/A
Top Inside Tank Width
101"
101" 101" 101"
Total Weight 13,720# 9,400# 18,020# 10,700#
Max. Load (Lbs.) 35,200# 35,200# 38,000# 38,000#
Auger Diameter (lower) 23" 23" 23" 23"
Auger Flighting Thickness 3/8" sectional 3/8" sectional 3/8" sectional 3/8" sectional
Ind. Lower Auger Shear Hub Sprockets Standard Standard Standard Standard
3rd Auger (solid material) Standard - 16" Standard - 16" Standard - 16" Standard - 16"
Drive - PTO RPM
Constant Velocity
1000 RPM
1 3/8-21 spline
PTO Direct Std.
Hydrostatic Opt.
1000 RPM
1 3/4-20 spline
PTO Direct Std.
Hydrostatic Opt.
Drive Line Protection Overrunning cut
out clutch w/bolts
Cut out clutch w/shear bolt (PTO) Overrunning cut
out clutch w/bolts
Cut out clutch w/shear bolt (PTO)
Roller Chain Drive 80-120-140 80-120-140 80-120-140 80-120-140
Roller Chain Auto Oiler Standard Standard Standard Standard
Expellor Speed (RPM) 716 RPM 716 RPM 716 RPM 716 RPM
Expellor Diameter 30" 30" 30" 30"
Construction
Material
Copper bearing
steel
Copper bearing
steel
Copper bearing
steel
Copper bearing
steel
Thickness - Auger Troughs 1/4" 1/4" 1/4" 1/4"
Thickness - Tank Sides 3/16" 3/16" 3/16" 3/16"
Frame Construction

Heavy 8"
channel

Heavy 8"
channel
Heavy 8"
channel
Heavy 8"
channel
Door Opening 32" x 53" 32" x 53" 32" x 53" 32" x 53"
Standard Axle Spind Diameter Standard Tandem 3 1/2" sleeved   N/A
High Floatation Axle
Spindle Diameter
Optional
4 1/2" sleeved
N/A Standard
4 1/2" sleeved
N/A
Hub Size 10 bolt - 15,000# N/A N/A N/A
High Floatation
Hub Size
10 bolt - 20,000#
(optional)
N/A 10 bolt - 20,000# N/A
Splash Shields - Stnd. 45 front/45 rear 45 front/45 rear 45 front/45 rear 45 front/45 rear
Tractor Requirement
PTO HP (Min.)
130 HP Tractor N/A 160 HP Tractor N/A
Lights Standard Standard Standard Standard
Hyd. Brakes-HF axle only Optional
2 or 4 wheels
Optional
2 or 4 wheels
Optional
2 or 4 wheels
Optional
2 or 4 wheels
Hyd. Drive Expellors
w/Variable Auger Speeds
N/A Optional N/A Optional
1000 RPM 1 3/4" spline Optional Optional Standard Standard
Hydraulic Lid Optional Optional Optional Optional
Poultry Litter Package Optional Optional Optional Optional
High Floatation
Axle Package
Optional N/A Standard N/A
Safety Chain Optional   Optional
Truck Mt. Drive Options   PTO - Direct Std.
Hydrostatic - opt.
  PTO - Direct Std.
Hydrostatic - opt.
