9500 “Crop Max” Spreader

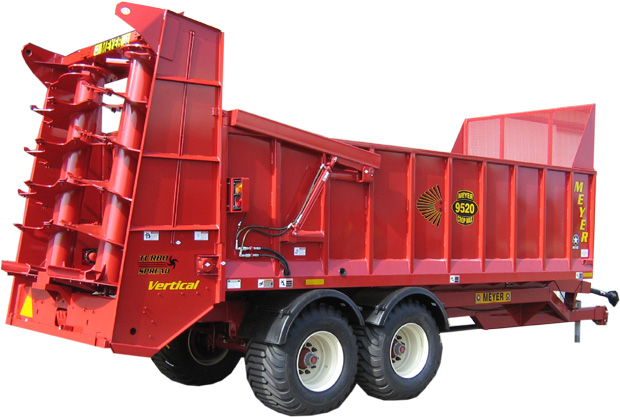

S-200 Vertical Expeller Attachment.

DOWNLOAD DEMONSTRATION VIDEO OF THIS PRODUCT

MANURE–SLUDGE–COMPOST - LITTER–COMMERCIAL WASTE
More Spreader For Your Money
This versatile unit offers multiple spreading attachments which are easily removed for stockpiling.
The S-100 and S-200 Attachments offer unprecedented spread quality resulting in better use of your valuable manure or byproduct.
A 36” Silage Extension Package is also available to make added use of your investment.
Check this spreader out before you buy.
Your Meyer dealer will do a demo on your farm.

Click here to view product brochure

Click here for optional Nutrient Tracker Upgrade

S-200 Vertical Expeller Attachment at work

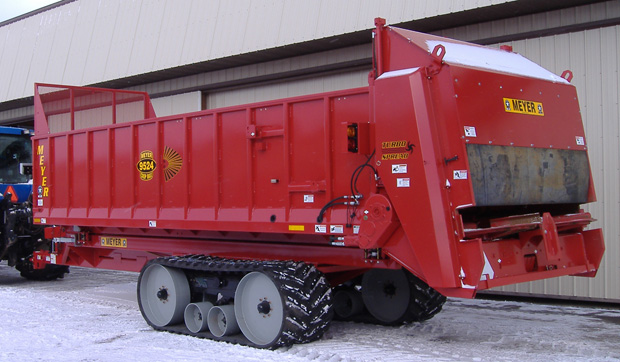

S-100 Combination Expeller Attachment



Truck Mounts Available
Contact factory for truck requirements

Silage Extension Package
Adds 36” additional height
*utilizes spreader tailgate
S-400 Grain Hopper Attachment Available

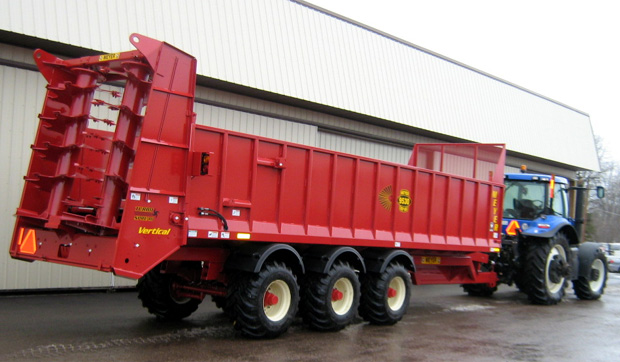

9530 Pull Type"Crop Max"Spreader with 3 axles.



Dimensions/Specs.
9520 Pull Type
9520 Truck Mnt
9524 Pull Type
9524 Truck Mnt
9530 Pull Type
9530 Truck Mnt

Box Inside Length
20'
20'
24'
24'
30'
30'
Overall Length
32' 5" w/XTS2400 600/50
24' 10" w/gearbox
36' 5" w/XTS3000 600/50
28' 10" w/gearbox
42'5" w/XTS4500 600/50
34'10" w/gearbox
Inside Width
90-3/4"
90-3/4"
90-3/4"
90-3/4"
90 3/4"
90 3/4"
Overall Width-Box/Box w/Tires
102"/111"
102"
102"/111"
102"
102"/111"
102"
Inside Height
47-1/2"
47-1/2"
47-1/2"
47-1/2"
47-1/2"
47-1/2"
Overall Height w/S-200
12' 1" x/XTS2400 600/50
8' 4.5" + truck height
12' 1" x/XTS3000 600/50
8' 4.5" + truck height
9' 3.25" with trailer
8' 4.5" + truck height
Capacity-Heaped
600 / 755 Cu. Ft.
600 / 755 Cu. Ft.
720 / 925 Cu. Ft.
720 / 925 Cu. Ft.
900 / 1,180 Cu. Ft.
900 / 1,180 Cu. Ft.
Loading Height
9' with trailer
63.5" + truck height
9' with trailer
63.5" + truck height

Weight (approx.) w/S-200
17,340# w600/50x22.5
12,300#
19,760# w600/50x22.5
13,340#
26,320#
14,900#
Min. Required HP
200 HP
300 HP + call factory
220 HP
350 HP + call factory
250 HP
400 HP + call factory
Chassis (see specs below)
48,000# Capacity Tandem-Non Steer
N/A
60,000# Capacity Tandem-Non Steer
N/A


Tires
600 50x22.5 Tires
N/A
600 50x22.5 Tires
N/A

N/A
Apron Chains
D667K/3-Aprons
D667K/3-Aprons
D667K/3-Aprons
D667K/3-Aprons
D667K/3-Aprons
D667K/3-Aprons
Slats Per Apron
31/93 Per Box
31/93 Per Box
37/111 Per Box
37/111 Per Box
46/138 Per Box
46/138 Per Box
Apron Drive
Hydraulic - Variable
Hydraulic - Variable
Hydraulic - Variable
Hydraulic - Variable
Hydraulic - Variable
Hydraulic - Variable
Floor
Super Slide
Solid Poly
Super Slide
Solid Poly
Super Slide
Solid Poly
Super Slide
Solid Poly
Super Slide
Solid Poly
Super Slide
Solid Poly
Box Sides
Steel - 10 gauge
Steel - 10 gauge
Steel - 10 gauge
Steel - 10 gauge
Steel - 10 gauge
Steel - 10 gauge
Front 36" Folding Guard Deflect
Standard
Standard
Standard
Standard
Standard
Standard
Transport Lights w/Cord
Standard
Standard
Standard
Standard
Standard
Standard







Options:






Rear Attach S-100/200/300/400
Optional
Optional
Optional
Optional
Optional
Optional
Silage Extension Package
Optional 36"
Optional 36"
Optional 36"
Optional 36"
Optional 36"
Optional 36"
Scale Packages
OPTIONAL
OPTIONAL
OPTIONAL
OPTIONAL
OPTIONAL
OPTIONAL
Nutrient Tracking M.S.
Optional
Optional
Optional
Optional
Optional
Optional
Reversing Apron Pkg.
Standard
Standard
Standard
Standard
Standard
Standard







Rear Attachments:
S-100 / Combo
S-200 / Vertical
S-300 / Horizontal
S-400 Grain Hopper


PTO Speed (RPM)
1000 RPM
1000 RPM
1000 RPM



PTO Protection Cutout Style
Automatic Clutch
Standard
Standard
Standard
Quick Detach Hopper


Vertical Expellor Diameter
N/A
44"
N/A



Flighting Thickness
N/A
1/2"
N/A



Horizontal Beater Diameter
2 standard
N/A
3 standard /
4th Optional

With Grain Door

Expeller/Beater Speed
400 RPM - Lower Disk
400 RPM




Tips/Paddles-Replaceable
AR400
AR400
AR400



Gate Style
Guillotine Style - Standard
Swing Arm Style
Swing Arm Style




Swing Arm Style - Optional





Trailers (Pull Type)
XTSW2400

XTSW3000

XTSW4500

Frame
4x8 tubing

4x8 tubing

4x8 tubing

Capacity (trailer/spreader/load)
48,000#

60,000#

90,000#

Axle Configuration
tandem - non steer

tandem
Non steer - STD
Steerable - OPT

tridem - steerable


25,000# x 2 - high speed AG

30,000# x 2 - high speed AG

33,000# x 3 - high speed-AG


Fixed Spring Suspension

Sliding Spring Suspension

Fixed Spring Suspension

Hub
Oil Bath - 10 Bolt

Oil Bath - 10 Bolt

10 Bolt

Articulating Implement Hitch
Std - Requires
1.5 or 2" pin
Hammerstrap style hitch

Std - Requires
1.5 or 2" pin
Hammerstrap style hitch

Std - Requires
1.5 or 2" pin
Hammerstrap style hitch

Fender Set
Standard

Standard

Standard

Tire Options:
600/50x22.5 high floatation

600/50x22.5 high floatation

600/50x22.5-HD high floatation


425/65x22.5
new truck tires

425/65x22.5
new truck tires

425/65x22.5
new truck tires


11Rx22.5 new
dual truck tires

11Rx22.5 new
dual truck tires

11Rx22.5 new
dual truck tires

Brakes (air,hyd or foot pedal)
 Optional

Optional

Optional-no air option

Safety Chain
Optional

Optional

Optional
